Project overview

Why coupling beam design needs engineering judgement

Coupling beams link adjacent wall piers, transfer shear between them and influence how overturning action is shared through the height of the core.

Introduction

The force attracted by each coupling beam is not governed by geometry alone. Beam stiffness, wall stiffness, aspect ratio, cracking assumptions and the overall coupled-wall configuration all influence the vertical distribution of coupling shear.

Very flexible beams may attract relatively low and fairly uniform shear. Very stiff beams can attract concentrated actions over part of the wall height. Medium-stiffness beams often produce a distribution between these two limits. The walkthrough therefore begins with system behaviour before moving to member design.

The design workflow then separates shear design from flexural design, applies overstrength where required, and uses a strut-and-tie model for deep coupling beams where ordinary beam theory is not appropriate.

What this learning page covers

  • Coupled-wall behaviour and distribution of coupling shear.
  • The influence of beam stiffness and span-to-depth ratio.
  • Design actions exported from ETABS.
  • Shear overstrength and capacity-design considerations.
  • Strut-and-tie modelling of deep coupling beams.
  • Flexural design without unnecessary overstrength amplification.
  • Nodal, strut, tie and reinforcement checks.
  • Batch processing and Excel export using RKALC.

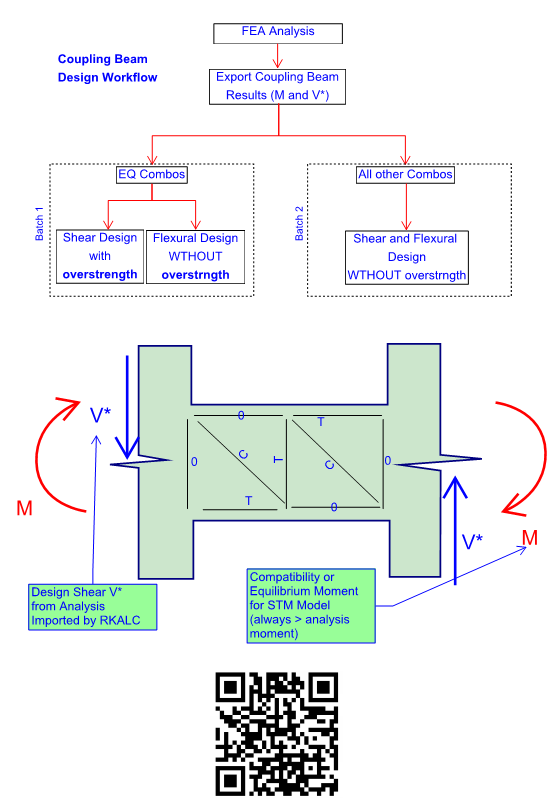

Coupling beam design workflow and RKALC STM calculator
Coupling beam behaviour, strut-and-tie modelling and the RKALC batch-design workflow.
Guide contents

Coupling beam workflow

Move directly to a specific part of the walkthrough.

01 · Structural behaviour

How stiffness changes coupling shear

The coupling-beam forces are part of the global wall response, not isolated member actions.

Coupling beams make the two wall piers act together. Their shears create an axial-force couple in the walls, which contributes to overturning resistance. The sum of coupling-beam shears is therefore related to the vertical wall reactions and to the moment carried by the coupled-wall system.

A rigid-beam idealisation can produce a pronounced concentration of shear over part of the building height. At the other extreme, flexible beams tend to attract smaller and more uniform actions. The real response usually sits between these limits and should be interpreted in the context of the adopted cracked stiffnesses.

Flexible beamsLower, more uniform shear
Very stiff beamsGreater concentration of shear
Aspect ratioStrongly affects behaviour
Analysis modelReview stiffness assumptions

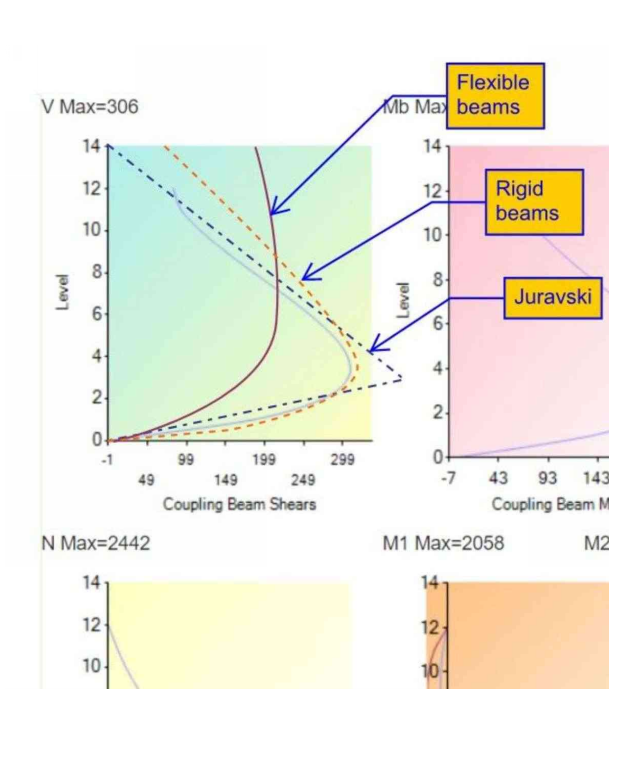

Coupling beam shear distribution for flexible and rigid beams
Comparison of representative coupling-shear distributions for different beam stiffnesses.
02 · Analysis results

Separate shear and flexural design actions

Export the governing ETABS actions and apply capacity-design amplification only where required.

The walkthrough exports coupling-beam end moments and shears from ETABS. Earthquake combinations are treated separately because the design shear may need to reflect flexural overstrength and equilibrium of the selected strut-and-tie mechanism.

For other combinations, the beam is checked for the directly analysed shear and moment. This distinction avoids unnecessarily amplifying every flexural action while still protecting the intended ductile mechanism against premature shear failure.

Step 1

Run FEA

Complete the global wall analysis using appropriate cracked stiffness assumptions.

Step 2

Export actions

Export coupling-beam end moments and shears for all relevant combinations.

Step 3

Split combinations

Identify earthquake combinations and other governing load cases.

Step 4

Design consistently

Apply the selected shear and flexural rules across the complete beam set.

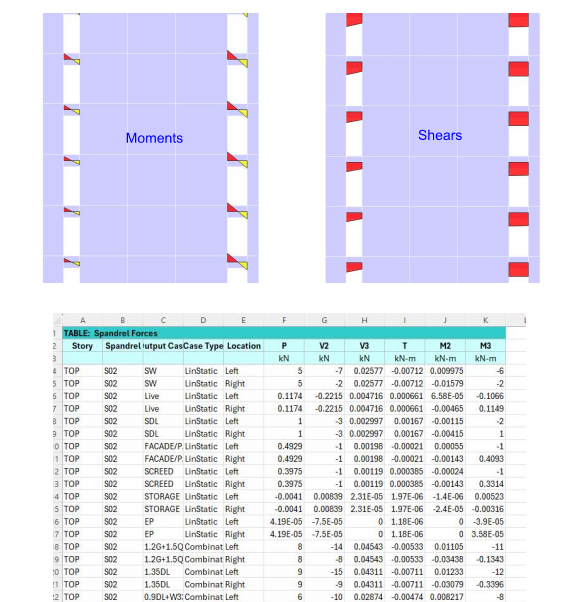

Coupling beam moments and shears exported from ETABS
Typical ETABS force diagrams and exported beam-end actions used by the RKALC workflow.
03 · Capacity design

Shear overstrength for coupling beams

The design shear should be compatible with the probable flexural strength and the intended yielding mechanism.

The current AS 3600 provisions use a general flexural overstrength approach for structural walls and supporting foundations. In practice this has commonly led to a coupling-beam shear amplification in the order of 1.6, depending on the adopted capacity calculation.

The proposed AS 3600:2026 coupling-beam clause shown in the guide introduces a more specific expression and a lower cap, producing an amplification nearer 1.3 for the illustrated case. Because the proposed clause may change before publication, the final adopted Standard must be checked.

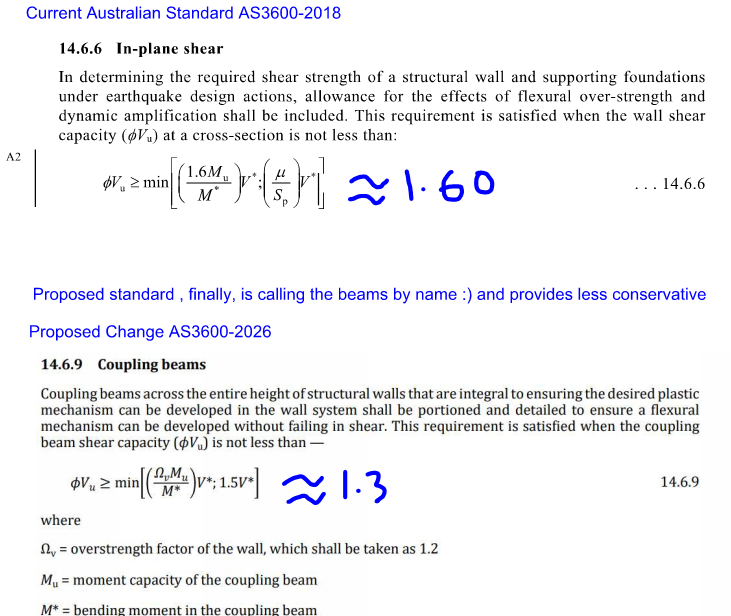

AS 3600 coupling beam overstrength comparison
Comparison between the current general wall overstrength approach and the proposed coupling-beam-specific provision.
04 · Deep-beam design

Strut-and-tie model for deep coupling beams

When the span-to-depth ratio is low, design the load path rather than relying on ordinary beam theory.

A deep coupling beam behaves as a disturbed region. Diagonal compression fields carry the shear between the wall faces, while longitudinal and transverse reinforcement provide the required tension ties, confinement and crack control.

The model used in the walkthrough contains diagonal concrete struts, tension ties and critical nodal zones near the wall-beam interfaces. The engineer can review the assumed strut angle, effective strut width, nodal dimensions, tie forces and reinforcement demand directly.

Member typeD-region / deep beam
Primary mechanismDiagonal compression struts
Tension resistanceReinforcement ties
Critical interfacesWall-face nodal zones

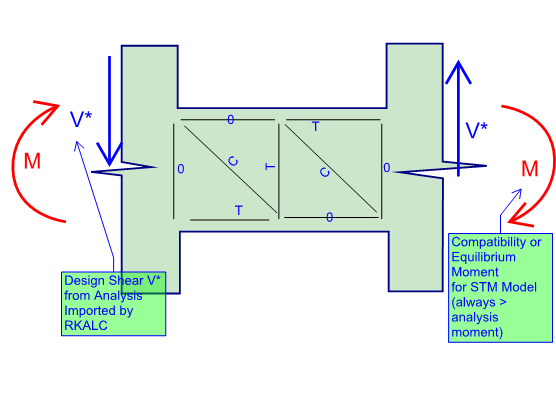

Strut-and-tie model for a deep reinforced concrete coupling beam
Representative RKALC STM model showing the compression struts, ties and nodal geometry.
05 · Verification

Nodal, strut and reinforcement checks

The calculation is only complete when the assumed force path and its detailing can be verified.

Nodal capacity

Check bearing dimensions, node type and concrete stress at the wall interfaces and internal nodes.

Strut capacity

Verify effective width, efficiency factor, compression stress and bursting demand.

Tie reinforcement

Provide adequate steel area, anchorage and a realistic path through the nodal zones.

Compatibility

Confirm that the adopted moment and shear actions remain compatible with equilibrium.

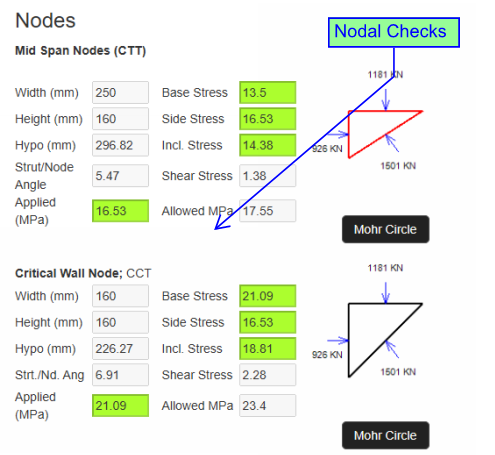

Coupling beam nodal checks
Critical wall-face and internal nodal checks.

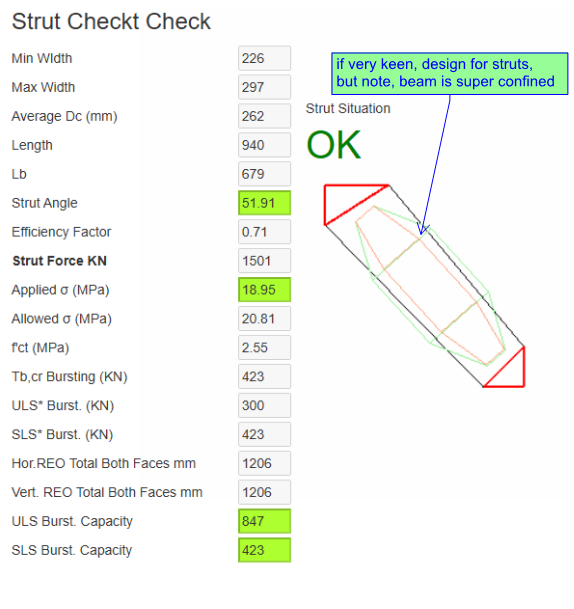

Coupling beam concrete strut check
Concrete strut geometry, capacity and bursting-reinforcement review.
06 · RKALC workflow

From ETABS export to batch design

Set the common beam properties once, import the actions and review the complete beam set consistently.

  1. Define material properties, beam geometry, nodal widths and the required overstrength factor.
  2. Export coupling-beam actions from ETABS or another analysis package.
  3. Group beams with common span, thickness and design parameters.
  4. Import the results into the RKALC batch solver.
  5. Run the strut-and-tie, flexural, nodal and reinforcement checks.
  6. Review governing beams and any failed or marginal checks.
  7. Export the results to Excel and generate detailed calculation sheets where required.

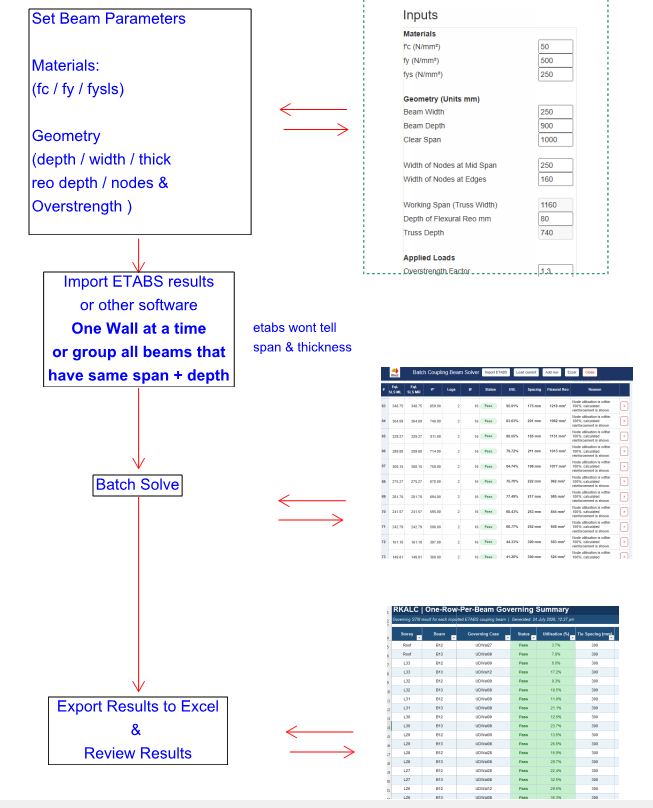

RKALC coupling beam batch design workflow
Set parameters, import actions, batch solve, review and export.
Video walkthrough

Coupling beam design from ETABS to RKALC

walkthrough covering the complete workflow for designing reinforced concrete coupling beams, from understanding their structural behaviour through to automated design using ETABS results.

Complete coupling beam workflow

Behaviour of coupled walls, stiffness sensitivity, overstrength, deep-beam STM design, nodal and strut checks, ETABS import and RKALC batch processing.

  • Review the full wall system before designing an individual beam.
  • Keep overstrength assumptions and equilibrium checks visible.
  • Use software to accelerate review, not replace engineering judgement.
Downloadable guide

Coupling beam design notes and calculation example

Read the marked-up guide, workflow diagrams and sample RKALC calculation report.

Coupling Beam Design

The PDF includes the coupled-wall behaviour discussion, design workflow, Australian Standard overstrength comparison, ETABS export, RKALC batch process, STM checks and sample calculation pages.

Open PDF guide Open STM Calculator

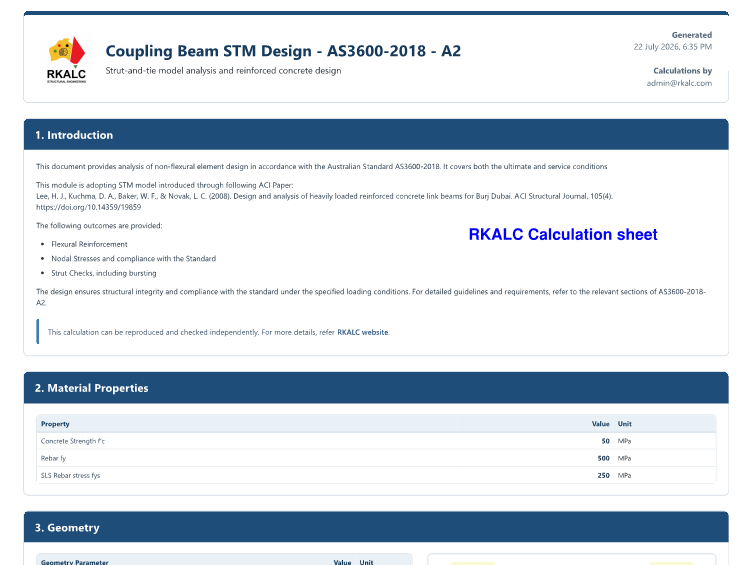

RKALC coupling beam STM calculation report
Sample RKALC calculation sheet showing geometry, applied actions, nodes and strut checks.

The PDF preview may not be supported by every browser. Open the guide in a new tab.

Engineering perspective
A coupling beam is not an isolated deep beam. It is one part of the mechanism that makes the wall piers work together.

Good design starts with the global coupled-wall response, follows the force path into the beam, and finishes with reinforcement that can yield, anchor and protect the intended structural mechanism.
